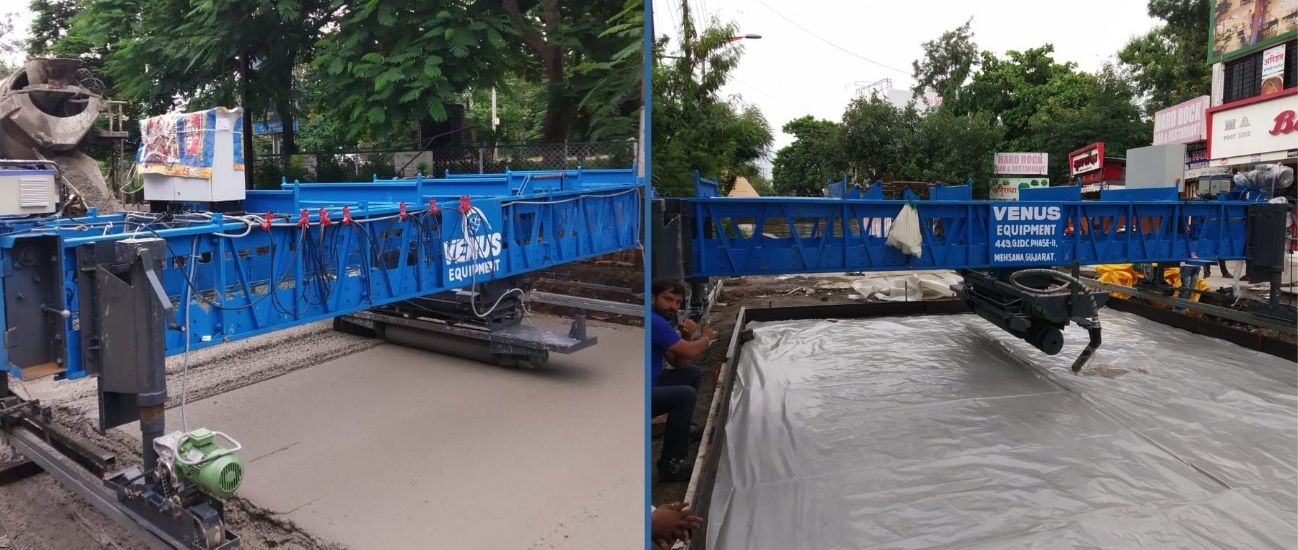

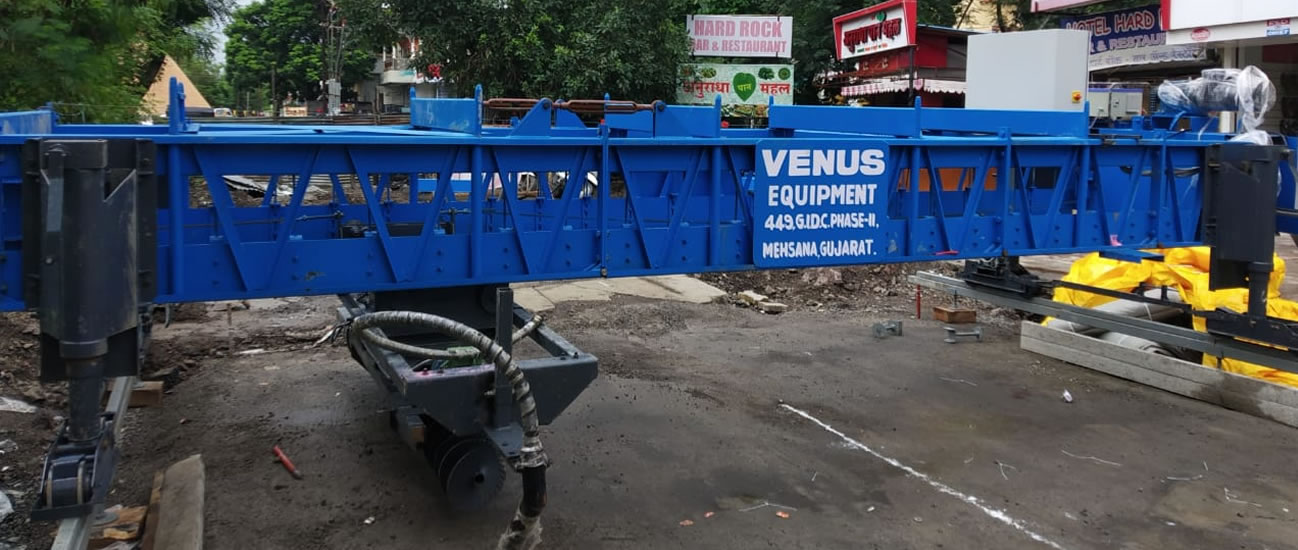

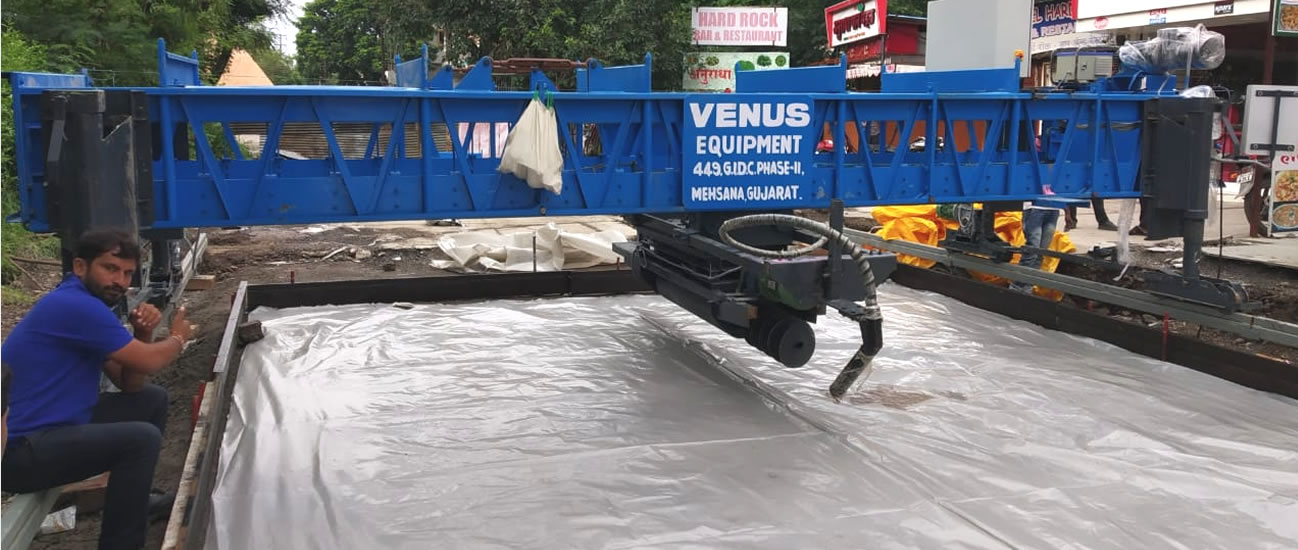

Venus Make Concrete Fixed Form Paver/ Canal Paver Finisher available in length 2.40 MTR ,1.2 mtr ,0.6 MTR which are infinitely adjustable up to 62 ft ,and 110 ft. Finishing Width: Finishing width normally 3ft (0.9 mtr) less than frame width and adjustable from 1MTR to 32MTR.
Venus Equipment based at Mehsana; India is a well known manufacturer of construction equipment. Concrete Fixed Form Paver is up to 32-meter-wide, manufactured with high tech mechanism with slab thickness and is used for various applications including Airport runway, Taxiway, Apron, City roads, Parking lots, Bridge decks and Irrigation canals.
VENUS EQUIPMENTS also manufactures Canals pavers to pave steep slopes up to 1:1 inclination and span up to 32 meters. Manufacturing multiple products range, the company has satisfied a large number of customers having big fleet with repeated orders. VENUS EQUIPMENTS is manufacturing Automatic Concrete Batching Plant with a capacity of 20 to 120 Cum./Hr., Concrete Paving Machines for Canals and Roads.
Finished Cylinder 270 mm dia., 1.2 Mtr. long precisely balanced
Extra Long Screw Augur (RH & LH) with hardened flights
Finishing Tolerance: +-3 mm in 12 ft.
| Model | Concrete Fixed Form Paver/ Fixed Form Canal Paver Finisher | ||
| Prime Mover | |||
| Driver End Panel | 5 HP Geared Motor | ||
| Vibratory Cylinder | 5 HP Geared Motor | ||
| Bogie RH & LH | 1 HP + 1 HP Geared Motor | ||
| Vibratory Cylinder | 1 HP Electric Motor | ||
| Traction System | |||
| Traction Drive | Two Electrically driven double flanged bogie wheels | ||
| Traction Speed | 0-22 rpm | ||
