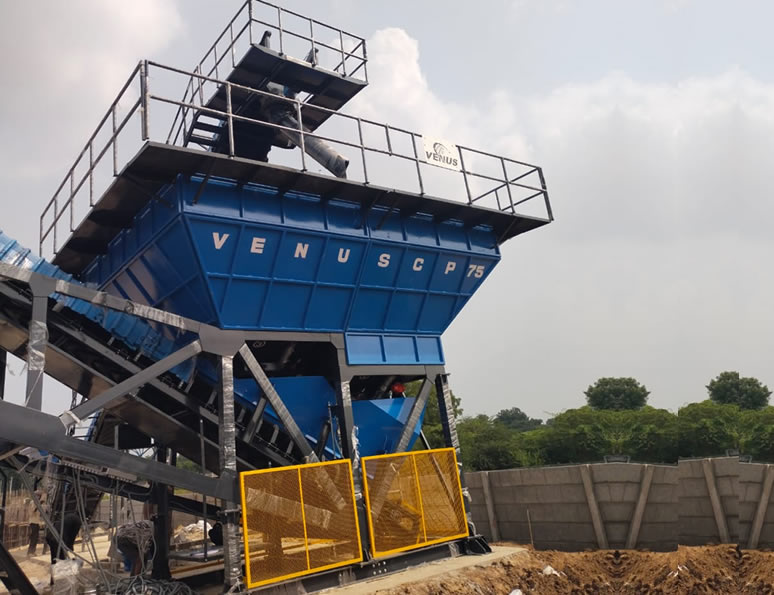

Stationary Batching Plant – Compartment Storage Bins (CP Series) – Advanced Concrete Production with Optimized Storage Solutions
The Venus CP Series Stationary Batching Plant with Compartment Storage Bins is engineered to provide high-efficiency concrete production for large-scale construction projects for Urban Infrastructure, RMC and all Major appliactions in Metro, Port, Road, Power, and many more sector. This innovative batching plant integrates advanced compartment storage technology, optimizing material organization and reducing downtime during the batching process. Ideal for high-capacity production, the CP Series ensures precise, consistent concrete mixing while streamlining material handling and reducing material wastage.
Best design suitable for RMC projects because it consume less space on site and gives accurate output, having whole plant assembly on single chassis with provision of material feeding conveyor so no need to make ramp to feed the bins of the plant, comes with PLC based control panel which makes plant operating easy and trouble free, having availability of fabricated skid to avoid civil foundation work at site at additional cost.
| Output Theoretical | 45 Cu. Mtr./Hr |
| Nos. of Bins | 4 Bin (2×2 Cross Bin) |
| Mixer | Twin Shaft/Turbo Pan |
| Cement/Filler Weighing System | YES |
| Water Weighing System | YES |
| Admixture Weighing System | YES |
| SUGGESTED D.G SET | 100 KVA |
| Maximum Size of Aggregate* | 60 mm |
| Water Sprinkling & Gravity Discharge System | YES |
| Air Compressor | 2 HP |
| Screw Conveyor for Cement | YES |
| Control System | PLC based control panel with internal cabling |
| Concrete Discharge Height | 4.1 Meter From The Ground Level |
